Roman Hartung, the German overclocking specialist known as der8auer, has demonstrated that a 3D-printed tower standing 110 centimeters tall can reduce processor temperatures by 19 degrees Celsius. The experiment, which used no active fans beyond standard case cooling, shows how the physics of a chimney can dramatically improve heat dissipation inside a desktop computer.

What You Need to Know

This experiment tests a fundamental physics principle: a tall enclosed channel creates a natural draft that pulls cool air into the system more effectively than simple convection. The approach requires no liquid cooling or exotic hardware, only a 3D-printed tower built from standard filament. The concept challenges assumptions about how much cooling performance can be gained from passive airflow alone and could influence future case design for silent or low-power builds.

The Science Behind the Stack

The chimney effect differs from the ordinary movement of hot air. Convection happens around any warm object as air heats, expands and rises. A chimney works because the rising air is confined inside a narrow, tall channel. As the heated column climbs upward, it creates low pressure at the base, which pulls in cooler air from the surroundings. The taller the chimney, the stronger the draft.

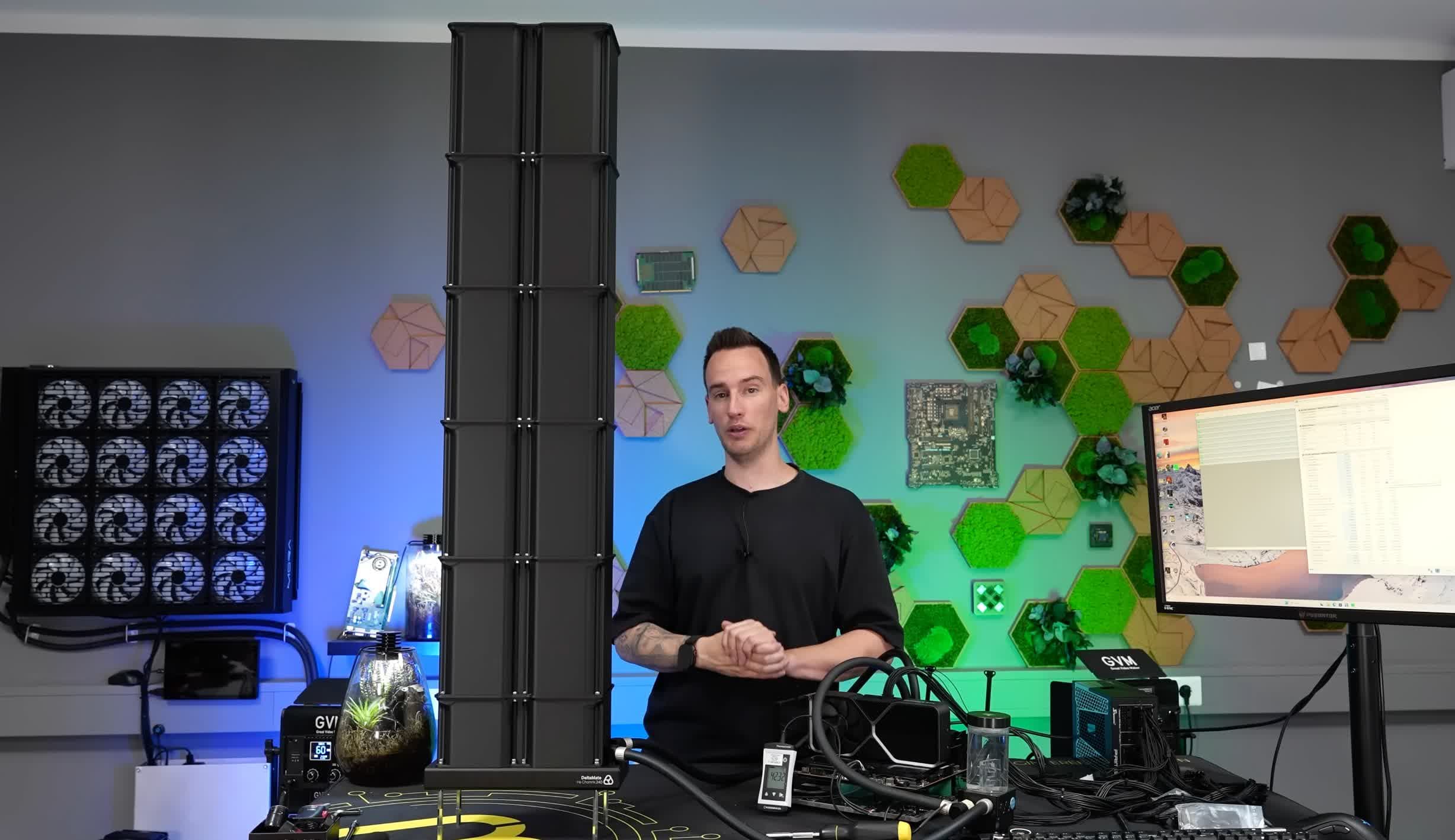

Hartung applied this principle directly to a PC chassis. He designed a 110-centimeter vertical duct that attaches above the CPU cooler. Hot air from the processor enters the bottom of the tower and accelerates upward inside the column, drawing fresh ambient air across the heatsink fins. The result is a continuous passive airflow that does not rely on high-speed fans.

Testing the 3D-Printed Tower

Building the chimney required precise design work. Hartung used standard 3D-printed segments that snap together to form the full 110-centimeter column. The tower connects to the top of a conventional air cooler and vents out the top of the computer case. The entire assembly adds height but no moving parts.

  • Temperature drop: 19 degrees Celsius reduction under load compared to the same system without the chimney tower.
  • Noise impact: The modification adds zero acoustic output since it uses only passive airflow physics.
  • Physical footprint: The 110-centimeter tower requires vertical clearance well above a standard desk or under-desk placement.

Hartung documented the test with thermal sensors and logged continuous temperature readings. The improvement held steady across repeated runs, confirming that the effect was not a one-time anomaly.

Why This Matters

The experiment challenges the assumption that lower temperatures always require more aggressive fan speeds or liquid cooling loops. For enthusiasts building silent workstations or small-scale servers, a passive chimney could offer a viable alternative to bulky radiators and pump systems. The approach does not eliminate the need for case fans entirely but reduces the thermal load those fans must handle.

DIY builders and case manufacturers may explore integrating chimney channels into future chassis designs. Taller tower cases already exist, but few intentionally shape their interior volume to create a controlled draft path. Hartung’s test provides a data-backed proof of concept that could influence how compact high-performance systems manage waste heat. The 19-degree drop is significant enough to affect real-world performance in thermally constrained builds.

The method also has limits. The chimney must exit above the case top, making it impractical for desk-enclosed setups or low-profile living room machines. It works best in open-air or tower configurations where vertical space is available. Yet within that niche, the improvement is striking and costs little more than the plastic filament and print time required.
